ChloriTap™ – Safe Water, Simplified
A Smart, Non-Electric Chlorination Solution for Rural and Urban Water Systems
ChloriTap™ is a gravity-powered, non-electric chlorine dosing system designed to deliver safe, consistent, and affordable drinking water disinfection. Developed by VP Eco Trade LLP, it’s built for India’s diverse water infrastructure — from rural handpumps to Gram Panchayat tanks and urban water clusters.
With zero electricity, zero pressure, and zero complexity, ChloriTap™ ensures that every community can access safe drinking water — sustainably and reliably.
Background
Innovation Overview: A novel non-electric inline chlorination device for water disinfection, jointly patented by VP Eco Trade LLP and IIT Roorkee, designed for decentralized and gravity-fed systems.

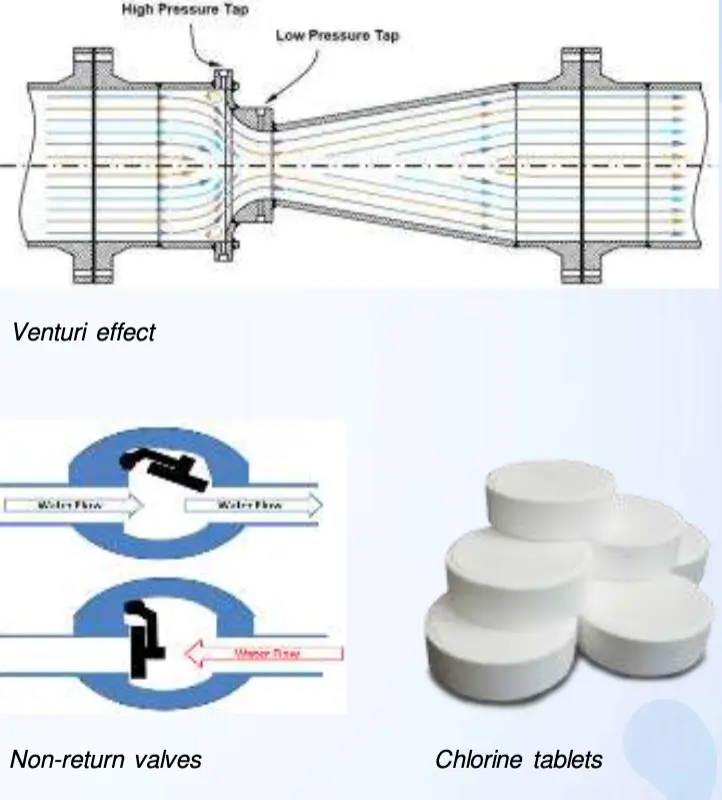

• Mechanism: Utilizes controlled dissolution of chlorine tablets via a bypass system, venturi-assisted turbulence, and multiple non return valves for safe, stable disinfection.
• Objective: To provide a low cost, electricity-free, and low-maintenance solution for maintaining residual chlorine in rural and peri-urban water supplies.

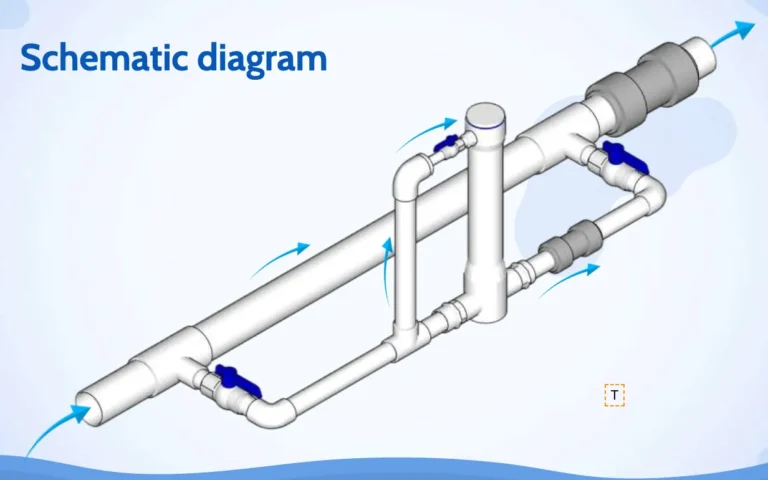

Working principle
- A portion of water is diverted from the main line into the tablet housing.
- Water dissolves chlorine tablets, aided by venturi-induced turbulence.
- The chlorinated water re-enters the main line. Valves regulate the chlorine dose in real time.
- Non-return valves prevent backflow into the system.
- Non-return valves Chlorine tablets: Our Device uses NSF-Certified Very Slow Dissolving Tablets
ChloriTap™ Models
| Model | Treated Volume (Litres) | Application Area | Typical Use Case |
|---|---|---|---|
| ChloriTap™-2LH | 2 Lakh | Handpumps, bore wells | Child-safe chlorination with every stroke |

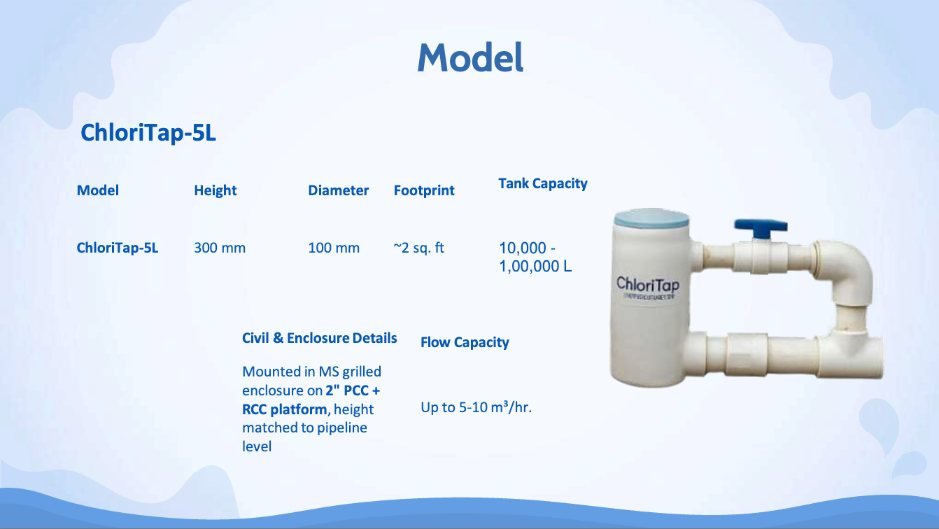

| ChloriTap™-5L | 5 Lakh | Schools, Anganwadis, poultry | Safe water for medium-scale institutions |

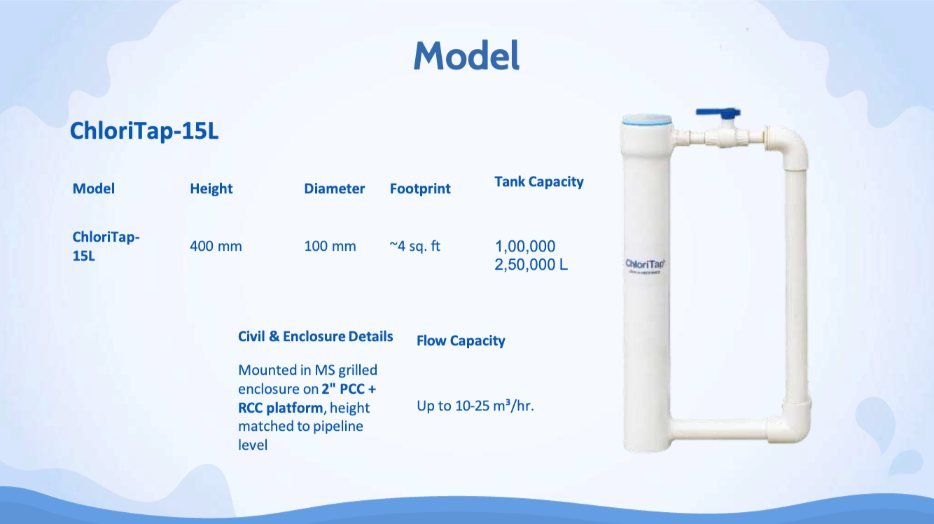

| ChloriTap™-15L | 15 Lakh | Small village pipeline schemes | Inline disinfection for rural water lines |

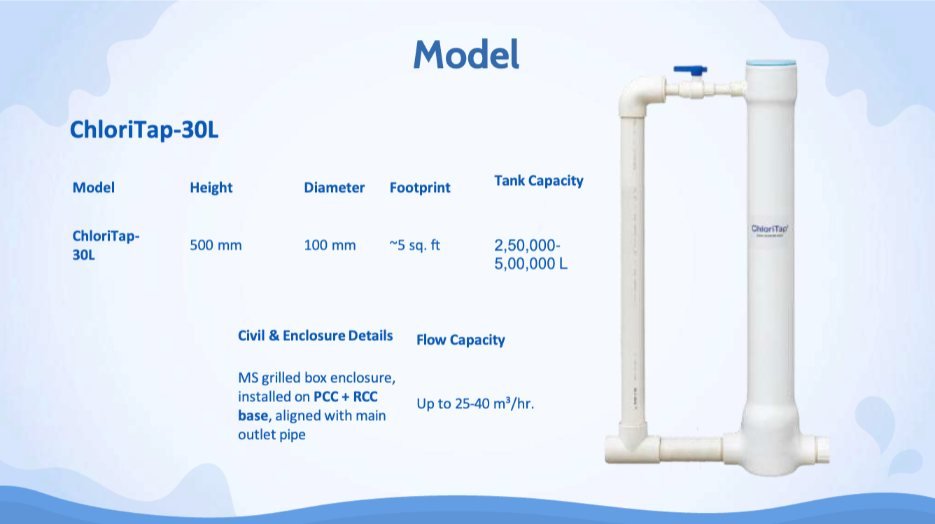

| ChloriTap™-30L | 30 Lakh | Gram Panchayat tanks, ESRs | Centralised chlorination for communities |
ChloriTap™ Advantages
Non-Electric Operation
Operates using gravity and vacuum principles, requiring no electricity, battery, or solar panel.
Plug & Play Design
Easily mountable on existing OHT/ESR/ UGSR outlet pipelines without needing pumps or valves
Accurate Tablet Dosing
Doses NSF Certified TCCA tablets consistently into the flowline, ensuring 0.2–0.5 ppm residual chlorine as per BIS 10500
Zero Moving Parts
No motor, gears, or electronics, leading to near-zero mechanical failures.
Long Operational Hours
A single tablet lasts 30+ daysdepending on flow and tank size.
Compact & Durable Construction
Made with industrial Food Grade FRP Material and corrosion-resistant MS grill enclosure
Civil-Ready Base Platform
Standard 2–4 sq.ft RCC + PCC base platform with MS enclosure, easily integrated into new or retrofitted schemes.
Eco-Friendly & Sustainable
No power source, no toxic waste, minimal maintenance—perfect for rural and remote setups.
Bringing technical
imagination
to
three-dimensional life.
Why Choose ChloriTap™?
JJM-Compliant
Meets Jal Jeevan Mission and BIS 10500:2012 standards
Non-Electric
Works anywhere, even in off-grid villages
Low Maintenance
No pumps, moving parts, or cartridges to replace
Scalable
Models available for 2 lakh to 30 lakh litres of water
